Name: 80hp Wheel Horse Lawn Tractor 2300rpm Dongfeng Tractor DF804
Brand: Dongfeng
Price: 14500 USD

Brand Name : Dongfeng

Model Number : DF804

Place of Origin : China

MOQ : 1 unit

Price : USD14500

Payment Terms : L/C,, T/T, Western Union

Supply Ability : 200 UNIT per month

Delivery Time : 30days

Model : DF604

Brand : Dongfeng

Power : 80hp

size : 4120*1980*2900

Total Displacement(L) : 4.94

Rated Power(Kw/hp) : 58.8/80

Contact Now

DONGFENG Tractor DF804 80HP Farm Tractor

Technical parameters of DONGFENG Tractor DF804 80HP Tractor

Tractor Parameters	Model		DF804
	Drive Type		4WD
	Overall Dimensions LWH(mm)		412019802900
	Wheel Base(mm)		2080
	Ground Clearance(mm)		380
	Weight with cabin(Kg)		2970
	Min. Turning Radius(m)		4.2
Engine Specifications	Model		LR4B3-T67Y1-U2
	Type		4-cylinder, water cooling,4-storke cycle, direct-injection
	Rated Power(Kw/hp)		58.8/80
	Rated Speed(rpm)		2300
	Fuel Tank Capacity(L)		82
	Total Displacement(L)		4.94
Transmission	Clutch		Linkage type, Double l-action clutch
	Gear Box		12F/12R, Meshing sleeve,side shift
	Max forward speed , km/h		1.5~35.3
	steering		Full hydraulic steering
	Differential lock		Mechanical
	Brake		Wet disc brake
	Drive type		4WD
Travelling Mechanism	Tyre	front	9.5-24
		rear	16.9-30
Working Device	Hydraulic System	Implement pump, L/min	46
		Remotes Valves(Option)	2
		3-po nt Hitch	CAT. 2
		Hydraulic Iift Control type	Draft and position control and floating control Duel hydro-cylinder high pressure raising appliance
		Lift Capacity 610 mm behind	1500
		Pump Type	CBN-F320
	P.T.O. Shaft	Rotating Speed(rpm)	540/1000
		Spline size	6-φ35 Rectangular spline

80hp Wheel Horse Lawn Tractor , 2300rpm Dongfeng Tractor DF804

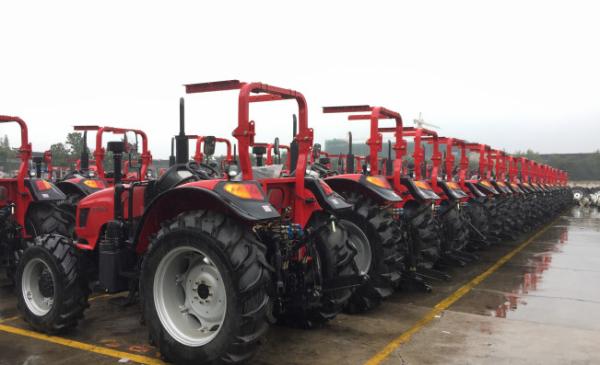

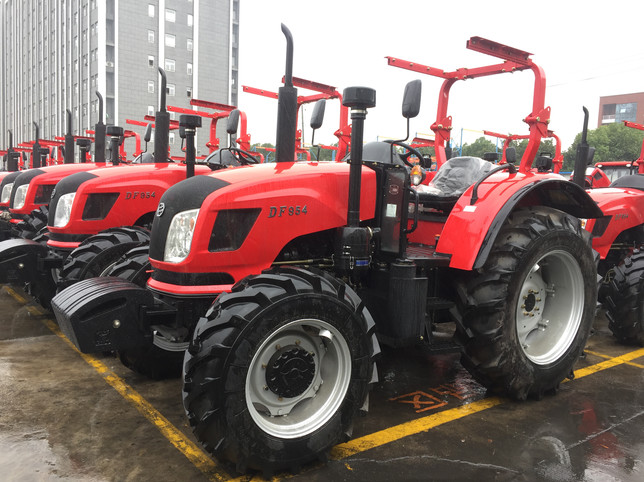

Factory photos
