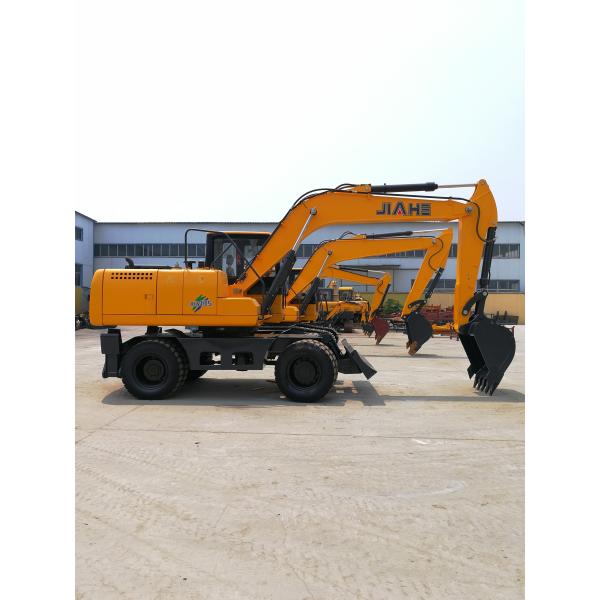

2200rpm 8t Compact Bucket Wheel Excavator With Low Noise

Name: 2200rpm 8t Compact Bucket Wheel Excavator With Low Noise
Brand: JIAHE
Price: 34600 USD

Brand Name : JIAHE

Model Number : JHW80

Certification : ISO

Place of Origin : China

MOQ : 1 unit

Price : USD34600

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 UNIT PER month

Delivery Time : 30days

power : 48kw

Maximum Digging height : 5876mm

Maximum Digging depth : 3415mm

Bucket capacity : 0.21m³

Tire Model : 7.5-16

Operation weight : 8000kg

Contact Now

8ton wheel excavator good quality 8Ton JIAHE JHW80 Wheel excavator

MAIN FEATURES:

▲The excavator is an economic type wheel excavator ,which matched YUCHAI engine with strong power and low noise and low consumption and environment protection

▲Fitted imported brand main pump .

▲ Adopted imported valves and swing motor and hydraulic driving system

▲ Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .

▲The professional structural parts and working mechanism , ensure the machine has reliability and durability .

▲The breaking pipeline equipped improve the working performance .

▲Installed luxury full seal cabin with A/C and LCD display and LED lights etc.

▲ The humanized design , ensure the machine can comfortable operation and convenient maintenance.

>> MAIN CONFIGURATION:

MAIN SEPCIFICATIONS
Bucket capacity	0.21m³
Swing speed	0~11 rpm
Max. gradeability	25°
Max. Bucket digging force	45KN
Max. Arm digging force	36.6KN
Engine model	YC4FA65
Power /Rotation speed	48kw/2200rpm
Tire Model	7.5-16
Hydraulic system pressure	21.5Mpa
Operation weight	8000kg
MACHINE SIZE
Overall dimension (LWH)	5795mm2205mm2850mm
Height of cabin	2850mm
Axle base	2400mm
Wheel distance	1596mm
Min.Ground clearance	230mm
Swing radius at tail	1790mm
WORKING RANGE
Max. Digging height	5876mm
Max. Dumping height	4228mm
Max. Digging depth	3415mm
Max. Vertical digging depth	2605mm
Max. Digging radius	5878mm
Min .swing radius	2356mm
Max Dozer blade lifting Distance	310mm
Max Dozer blade cutting Distance	130mm
